1⁄700
Spanish Navy Battleship PELAYO, 1895

a build story by Jim Baumann
12
Comments

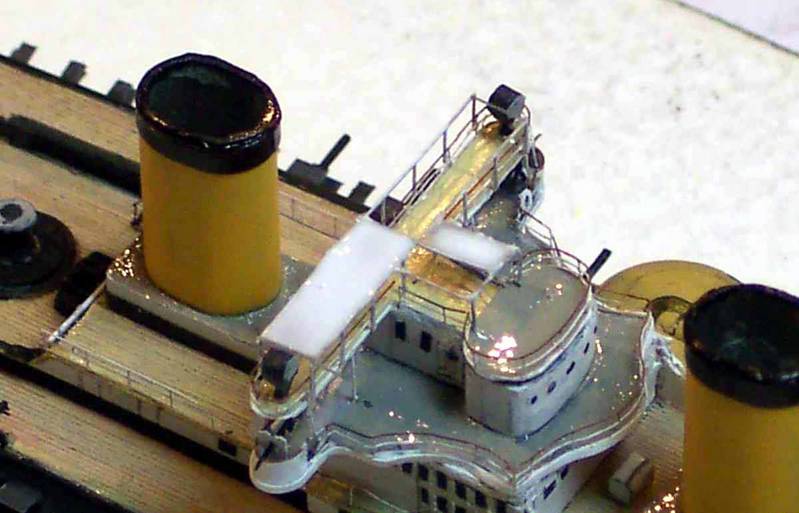

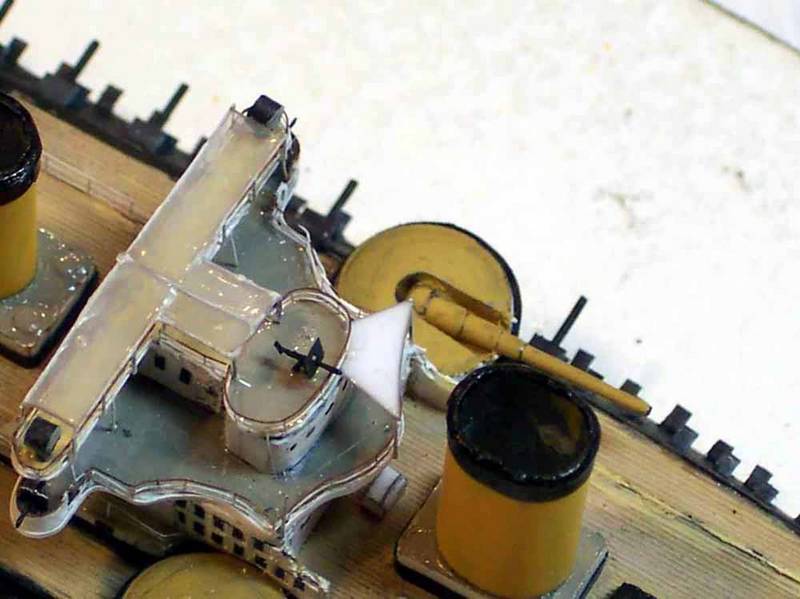

The ship was mounted on my usual artists water-color paper base. The large mooring buoy was made of alloy tube and furnished with a small PE ring according to photos. Virtually all railings were GMM superfine gold plus colored with an indelible pen. The small awnings on the bridge were made of thinned white glue dragged across the frame edged prior with sprue.





All rigging was stretched sprue applied with patience and a steady hand. The ratlines and shrouds were originally intended to be the new WEM items, alas the fighting tops were too high so I resorted to making them from wire shrouds and and sprue foot-ropes.

A mention must be made of the Vinyl Tape used throughout the build of this model; It is a small sheet of matt vinyl that has been slit into differing widths ranging from 0.5mm upwards. It is manufactured by BECC model accessories here in the UK and was supplied by Mr. Carpenter of CAMMET Ltd. It is available in a variety of colors.

The PELAYO was a most challenging subject to research, there being much erroneous information around. I would not have been able to complete this model without the gracious and speedy help of the following people:

Santi Caro for supplying me with numerous books and kindly translating great swathes of text as well as ALL the picture captions.
Darius Mazurowski for putting me in touch with Nick Mitiuckov author of book 'Pelayo'.
Sergey Myagkov for express sending the above book to me on trust!
Julio Pillet for sending me huge scans of the plans from the Museum in Madrid!
Steve Backer for looking up his 1887 naval annual publication featuring the Pelayo to set my mind at rest about the capstans!....
....and many many others who immediately dug about in their reference piles to assist me with my quest for information

THANK YOU ALL!
