1⁄700
Spanish Navy Battleship PELAYO, 1895

a build story by Jim Baumann
12
Comments

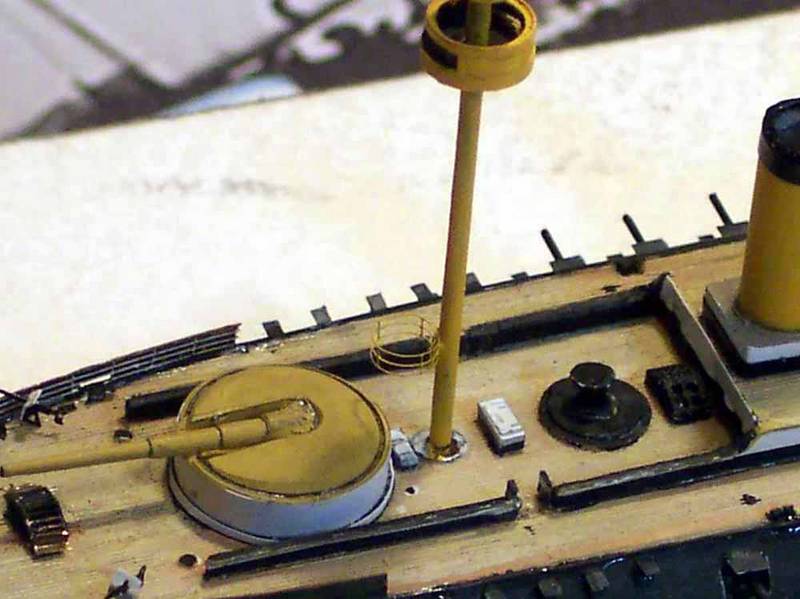

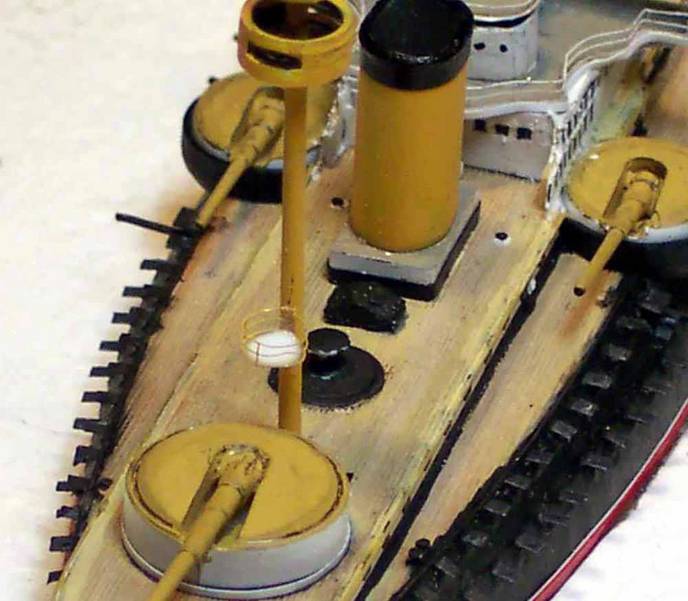

The lower searchlight platforms were made by forming a circle of PE handrail, affixing to the mast, and then painting. The open bottom of the PE rail was infilled with white glue, and when dry, it was painted from underneath; this has a two-fold advantage...keeping the rail and platform floor demarcation line perfect, as well as keeping the platform thickness to the absolute minimum.



I had been steadfastly avoiding the problem of replicating the complex boat launching mechanism...it consisting of a variety of tapering pierced girder structures with slide guides on top.
Fundamentally it was an athwartships sliding, traveling hoist for the steam-boats, and the outer arms, when the vessel was underway, were capable of being folded fore and aft.
