Hi guys, this is my first time active on this part of the site.(usually on armorama) Just wanted to share my first vessel build, commissioned by a collector. Being an ex-Navyman, I was thrilled when I started this build...and coincidently I've always wanted to build THE ENTERPRISE!!!

With much hours on end scrutinizing the details and works of art of this ship by other modelers...I took the plunge ending last year and with Mk 2 Eyeballs---started all measurements and markings with pencil on paper and on the ship's hull...
I've completed most of the scratch built hanger bay, to be lit with white & red leds thru the hundreds of cut outs on the ceiling- simulating lighting areas approximately 294 square cut-outs!! On the reverse side of the ceiling, sheets of styrene frame work was added for strength thus dividing the 294 lighting cut-outs into 47 sections which each will receive a clear sheet of styrene in order to diffuse the intensity of the leds.
Most of the ongoing detailing is based on the book The USS ENTERPRISE in detail & scale.

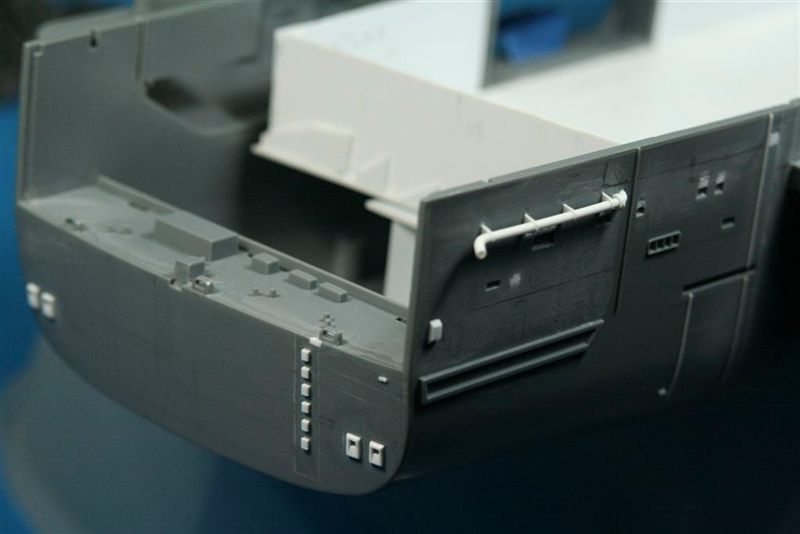

As the photos show,I've opened up all elevator openings to the hangerbay, including Elevator No.1.
There's 20% scratch building left to be done-mostly on the exterior of the ship.
I've also prepared most of the carrier's photoetch set from Gold medal Models, including their photoetch elevators set....and many fire hose reels which I'm dreading the monotony..
The Island will be lit subtly and I'm hoping to light the Fresnel Lens Optical Landing System and stern landing light locations with fibre optics.
The ship will also house Eduard's pre-colored photoetch figures.
Follow up photos will show details added to the exterior hull and structures such as the SPN-35,LSO platform,AN/SPN-41,etc..

SUPPORTS


HANGERBAY & CEILING

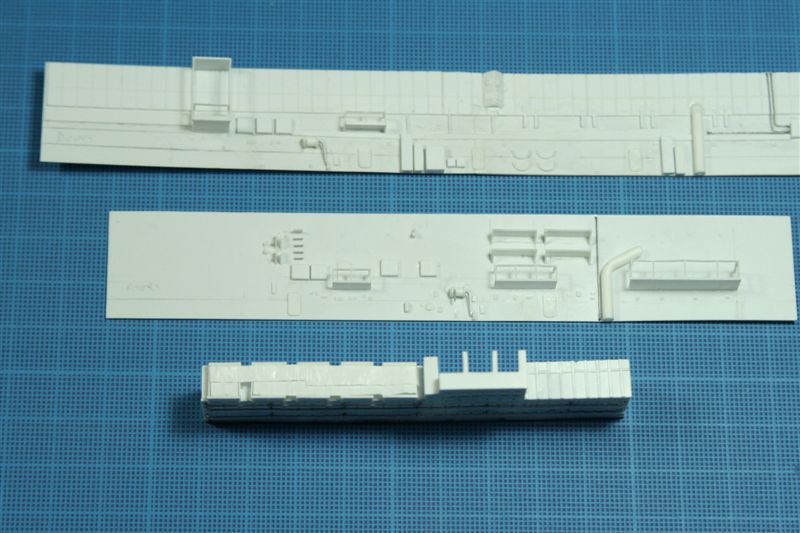

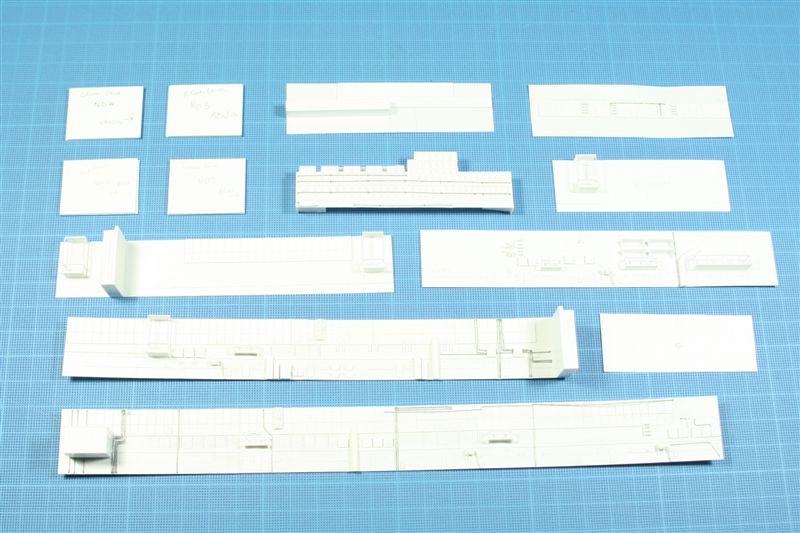

HANGERBAY WALL DETAILS


CEILINGS (note the weapons racks @20 parts per rack x 15 racks = 300parts!)

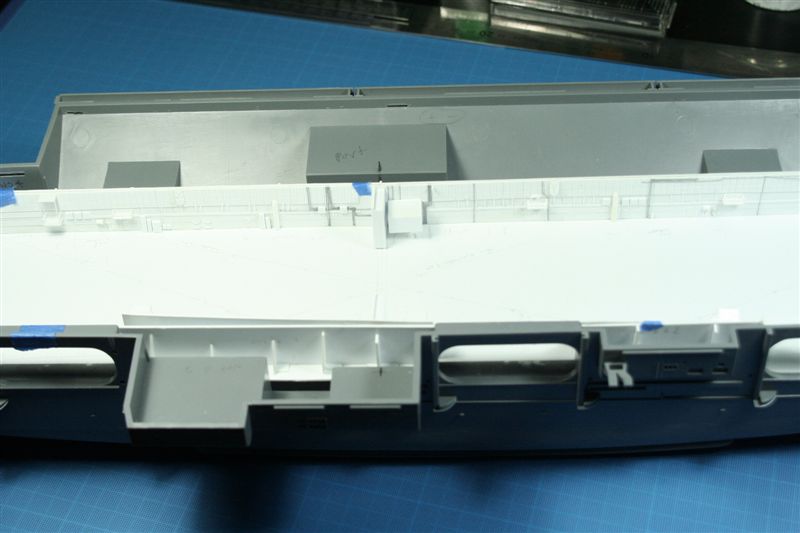

Walls in test installation

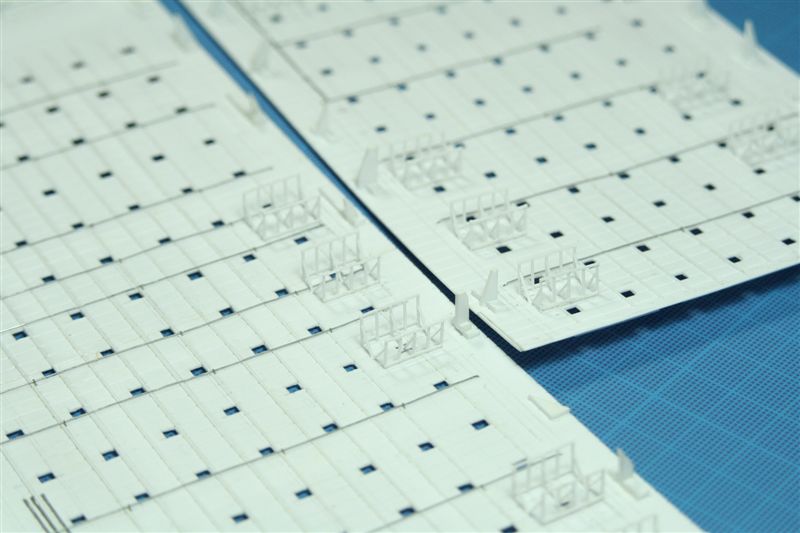

2-part Ceiling (note cut outs for lighting : estimated count based on references = 294

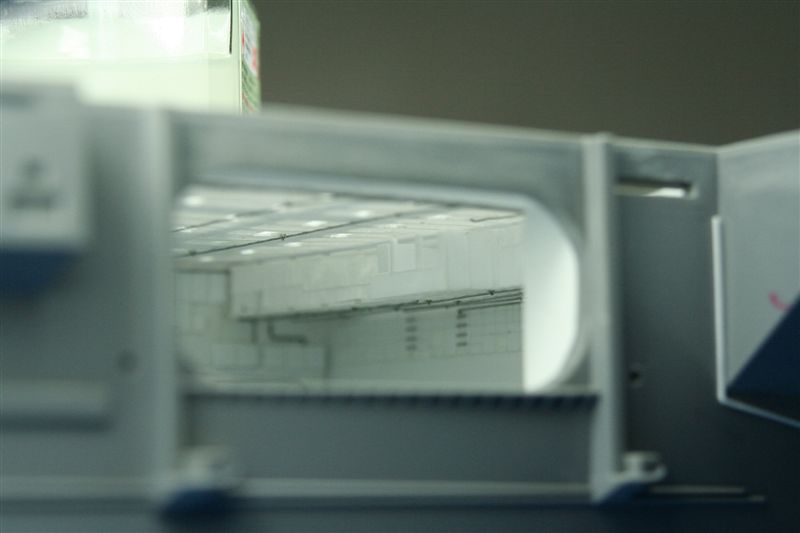

Looking in..

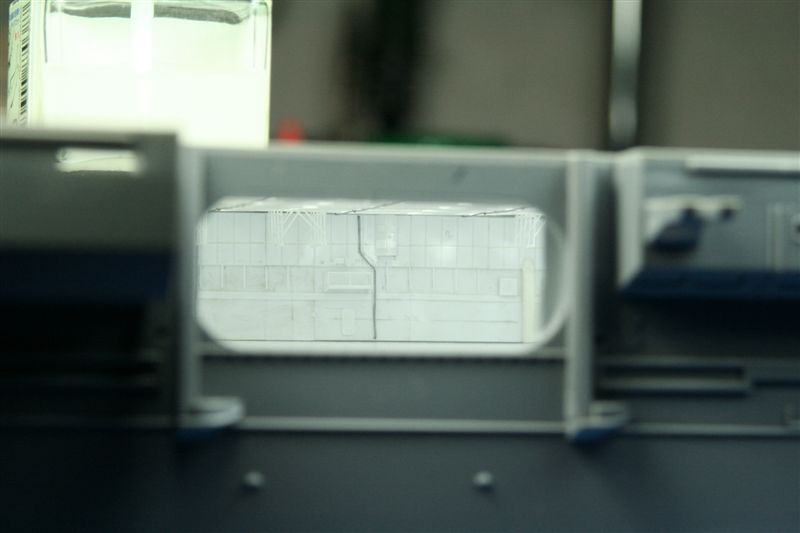

Note the size and the height of Tamiya's liquid cement bottle as compared to the opening of the hangerbay..the bottle is higher!
In regards to measurements and scratch building the details..at 1/350 scale they are really very small, half the time I was modeling parts too large and had to down-size constantly...Hopefully a lesson learned!





Detailing and scratch building in 1/350 scale is certainly a challenge..such tiny details to scrutinize...thus I will soon need to replace my very used MK 2 Eyeballs Anyone have spares?
