Micha, Daniel,
you both are experts on WW II German warships. Do you have photos or information on the ZG C/38S optical gun directors?
Seems to be as good a secret now as in 1940
Cheers,
Julian
Gremlin56
Joined: October 30, 2005
KitMaker: 3,897 posts
Model Shipwrights: 3,301 posts
Posted: Saturday, February 23, 2013 - 07:49 AM UTC
Your build is looking very good Micha,
Nice to see the smoke dispenser vents added.
cheers,
Julian
DanielMoscatelli
Visit this Community
Montevideo, Uruguay
Joined: August 22, 2011
KitMaker: 998 posts
Model Shipwrights: 941 posts
Posted: Saturday, February 23, 2013 - 10:19 AM UTC
Julian . The system of control of shot he was still the bosses of the Scharnhorst and Gneisenau, with three positions of control for the principal artillery; the front position was equipped by an estereoscopios of 7m of base, other two by equipments of boss of 10m. Both positions later were possessing three directors ZG C/38S and periscopes.
For the control of night shot one was possessing two positions equipped with two Zelsaule C38s in the front and back part of the ship. The information of the white, scope, course and inclination were sent to the system of control of principal shot located in the platform of the half compartment 15; in the compartment 7 of the back part an equal position of reservation existed, except for the computer of bombardment to land.

Sorry for my English Daniel
DanielMoscatelli
Visit this Community
Montevideo, Uruguay
Joined: August 22, 2011
KitMaker: 998 posts
Model Shipwrights: 941 posts
Posted: Saturday, February 23, 2013 - 11:25 AM UTC
Some information hereabouts...

http://www.bismarck-class.dk/technicallayout/rangefinder/bismarck/rangefinder_bism.html

DanielMoscatelli
Visit this Community
Montevideo, Uruguay
Joined: August 22, 2011
KitMaker: 998 posts
Model Shipwrights: 941 posts
Posted: Saturday, February 23, 2013 - 04:58 PM UTC

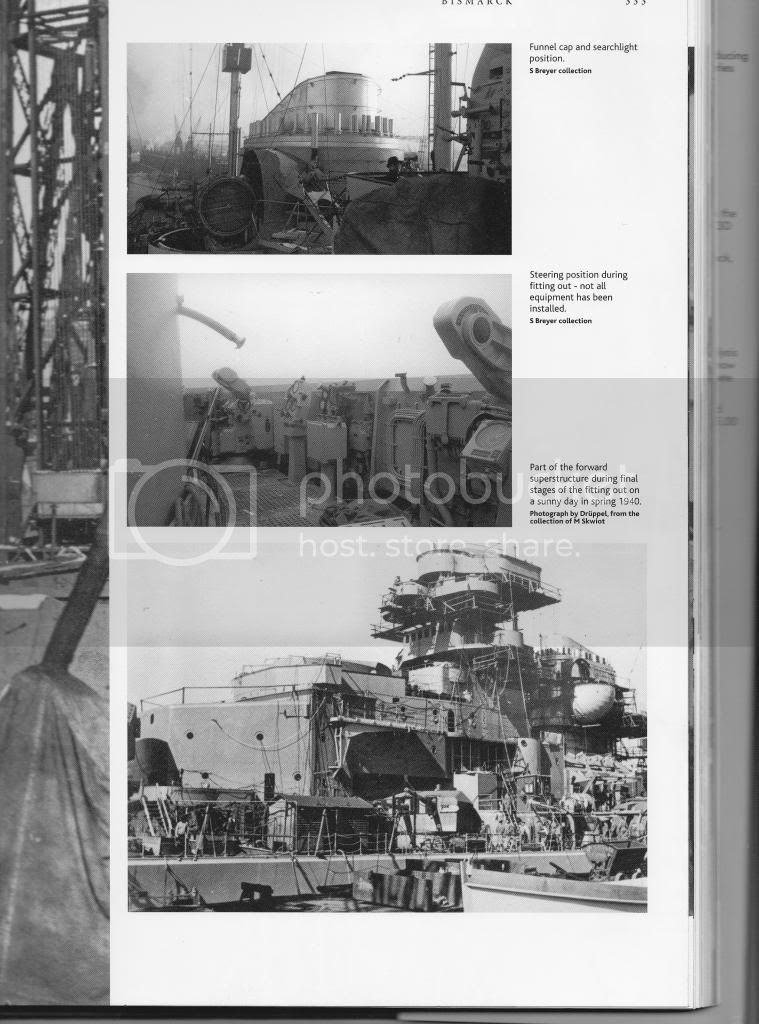

Julian ... friend I continue searching and it is not easy to find a good photo of the Night the director .......... In the page 139 of the book Anatomy of the ship Bismarck you were finding a good graph of these. I escan this picture of the German Capital Ships



I hope that it is of help .... I continue in the investigation jejejje

Gremlin56
Joined: October 30, 2005
KitMaker: 3,897 posts
Model Shipwrights: 3,301 posts
Posted: Saturday, February 23, 2013 - 07:37 PM UTC
Information received Daniel, Thank you very much
Julian
DanielMoscatelli
Visit this Community
Montevideo, Uruguay
Joined: August 22, 2011
KitMaker: 998 posts
Model Shipwrights: 941 posts
Posted: Sunday, February 24, 2013 - 02:36 AM UTC
Uppps Julian!!! Now I realize my confucion!!!! I look for information on " Zeilsaule C38 night the director " and you looking is an information of " ZC C38s gun the director " Sorry julian for my confusion!!!
enjoys a time and looks well at this material....
elmarriachi
Visit this Community
Baden-Württemberg, Germany
Joined: December 26, 2009
KitMaker: 813 posts
Model Shipwrights: 304 posts
Posted: Sunday, February 24, 2013 - 04:32 AM UTC
Hi at all...

Thank you for your comments and assists!

.... so let's go on a little bit. The first pictures in color .... Bismarck hull underwater in red, upper side in grey..... what do you think about the colors? I think it is looking good so far.....

Now I will let the hull dry till next weekend.... then I will tape upperside and downside for painting the black stripe.... also the shape of the red at the rear of the hull has to be made correct when the dark stripe will be painted.

But now - one week time to dry before taping everything ...







Next weekend the nearly black stripe, then clear coat over all.... then the decals.... then clear coat again... then oil colors for the windows and on top of all (for a better "not plastic" look), then final matt coat again.... hull painting finished

BR
Micha
Gremlin56
Joined: October 30, 2005
KitMaker: 3,897 posts
Model Shipwrights: 3,301 posts
Posted: Sunday, February 24, 2013 - 04:40 AM UTC
Looking good so far Micha. Lifecolor paints?
Cheers,
Julian
elmarriachi
Visit this Community
Baden-Württemberg, Germany
Joined: December 26, 2009
KitMaker: 813 posts
Model Shipwrights: 304 posts
Posted: Sunday, February 24, 2013 - 05:38 AM UTC
Hi Julian,
yes - the red is partially darker, partially lighter
BR
Gremlin56
Joined: October 30, 2005
KitMaker: 3,897 posts
Model Shipwrights: 3,301 posts
Posted: Sunday, February 24, 2013 - 05:40 AM UTC
I am using Lifecolor as well. The schiffsbodem red is great. For the superstructure I am using hellgrau, starting off very light because the weathering will make it darker.
cheers,
Julian
DanielMoscatelli
Visit this Community
Montevideo, Uruguay
Joined: August 22, 2011
KitMaker: 998 posts
Model Shipwrights: 941 posts
Posted: Sunday, February 24, 2013 - 06:18 AM UTC
Micha !! great work !!

Lifecolor set ......

https://airbrushes.com/product_info.php?cPath=4_202_203&products_id=2844&osCsid=5f6f4e2c667756db3e2ee08dbb533c4d

elmarriachi
Visit this Community
Baden-Württemberg, Germany
Joined: December 26, 2009
KitMaker: 813 posts
Model Shipwrights: 304 posts
Posted: Wednesday, February 27, 2013 - 08:13 AM UTC
Next step.... the black line (black and a little bit grey mixed), 1,2cm size....

at the rear of the hull - red new painted, that's why different looking on some pics.


















LG
Micha
Gremlin56
Joined: October 30, 2005
KitMaker: 3,897 posts
Model Shipwrights: 3,301 posts
Posted: Thursday, February 28, 2013 - 07:17 AM UTC
Looks good Micha, are you going for a specific date?
Cheers,
Julian
elmarriachi
Visit this Community
Baden-Württemberg, Germany
Joined: December 26, 2009
KitMaker: 813 posts
Model Shipwrights: 304 posts
Posted: Thursday, February 28, 2013 - 07:46 AM UTC
Hi Julian,

I think about 1940th - no painted waves or black/white stripes, but the red paints with the swastikas on the deck...

BR
Michael
warreni
Visit this Community
South Australia, Australia
Joined: August 14, 2007
KitMaker: 5,926 posts
Model Shipwrights: 2,624 posts
Posted: Thursday, February 28, 2013 - 12:48 PM UTC
Woohoo! I can see the pictures!!
Don't know if you did anything Michael but I am seeing all of them fine now.
Looking very good mate.
I am tossing up what version to build but I am thinking of a nice shiny new Bismarck before it had all the extra markings added like you are building. But I have not decided yet.
Cheers and beers
Warren
elmarriachi
Visit this Community
Baden-Württemberg, Germany
Joined: December 26, 2009
KitMaker: 813 posts
Model Shipwrights: 304 posts
Posted: Sunday, March 03, 2013 - 03:04 AM UTC
The so far finished hull.... after some furher paintings in black and grey, black oil color washings, dry brushing and further airbrush painting in light grey later.....

the mostly finished hull:

















... and with the wooden deck... ((not glued yet))













Hope you like it so far!

Micha
warreni
Visit this Community
South Australia, Australia
Joined: August 14, 2007
KitMaker: 5,926 posts
Model Shipwrights: 2,624 posts
Posted: Sunday, March 03, 2013 - 08:26 AM UTC
Hi Micha

How have you found the MK1 Design PE and wooden deck?

Cheers
Warren
vonHengest
Visit this Community
Texas, United States
Joined: June 29, 2010
KitMaker: 5,854 posts
Model Shipwrights: 350 posts
Posted: Sunday, March 03, 2013 - 03:59 PM UTC
I am wondering the same thing, it looks very nice.
DanielMoscatelli
Visit this Community
Montevideo, Uruguay
Joined: August 22, 2011
KitMaker: 998 posts
Model Shipwrights: 941 posts
Posted: Sunday, March 03, 2013 - 11:06 PM UTC
Dear friend, remaining Excellent!!!!!

Regards Daniel
elmarriachi
Visit this Community
Baden-Württemberg, Germany
Joined: December 26, 2009
KitMaker: 813 posts
Model Shipwrights: 304 posts
Posted: Sunday, March 03, 2013 - 11:13 PM UTC
Hello,
thank you @ all!
The MK1 parts and the wooden deck are part of the KA Models MK1 design DX Value pack... ordered it directly from South Korea for a good price (ebay....)
Best regards
Michael
warreni
Visit this Community
South Australia, Australia
Joined: August 14, 2007
KitMaker: 5,926 posts
Model Shipwrights: 2,624 posts
Posted: Monday, March 04, 2013 - 08:30 AM UTC

Quoted Text

Hello,
thank you @ all!
The MK1 parts and the wooden deck are part of the KA Models MK1 design DX Value pack... ordered it directly from South Korea for a good price (ebay....)
Best regards
Michael



Sorry, I meant what is it like to work with?
Is the PE good quality?
How does the wooden deck stick and are the cut-outs correct?
Stuff like that. I can get the set for under $200 but I want to make sure it is worth it firat.
Cheers
Warren
elmarriachi
Visit this Community
Baden-Württemberg, Germany
Joined: December 26, 2009
KitMaker: 813 posts
Model Shipwrights: 304 posts
Posted: Monday, March 04, 2013 - 08:47 AM UTC
Hi Warren,
oh.... sorry... my mistake!

So what to say about the MK1 parts so far.... the first PE parts are great.... the frames of the windows are easy to mount.... the parts got not damaged when handling a bit too hard with it.... the wooden deck is fantastic. I glued it on the deck today (pictures tomorrow I think) - the wooden parts glue perfect.... the cut outs are 100% exact - all cut outs fit (also the smallest ones !!!). And the wooden parts are already cut out, only some smaller parts are inside the bigger ones... and these are only fixed on 2 or max. 4 pieces...

So I think - the MK1 set is each USD worth.... its a great set!

BR
Michael
elmarriachi
Visit this Community
Baden-Württemberg, Germany
Joined: December 26, 2009
KitMaker: 813 posts
Model Shipwrights: 304 posts
Posted: Monday, March 04, 2013 - 08:48 AM UTC
Hi @ all...

what do you think about the color of the wooden deck... would you keep it like that? Or applying a little oil color wash? If yes - brown? Black? everywhere or only partially?

Micahel
warreni
Visit this Community
South Australia, Australia
Joined: August 14, 2007
KitMaker: 5,926 posts
Model Shipwrights: 2,624 posts
Posted: Monday, March 04, 2013 - 09:11 AM UTC

Quoted Text

Hi @ all...

what do you think about the color of the wooden deck... would you keep it like that? Or applying a little oil color wash? If yes - brown? Black? everywhere or only partially?

Micahel



Thanks mate

From my experience the decks are the right color, but I have been on some ships that have been bobbing around the ocean for a long time and their decks are light grey rather than wood color. Bu most military ships are kept in A1 condition.
