De Zeven Provincien Class (LCF) Air Defence and Command Frigates, Netherlands
Royal Schelde have built four De Zeven Provincien Class guided missile carrying fast frigates for the Royal Netherlands Navy. The air defence and command (LCF) frigates were built at Royal Schelde's Flushing shipyard. They replace Tromp class and Jacob van Heesmarck Class frigates
Royal Schelde have built four De Zeven Provincien Class guided missile carrying fast frigates for the Royal Netherlands Navy. The air defence and command (LCF) frigates were built at Royal Schelde's Flushing shipyard. They replace Tromp class and Jacob van Heesmarck Class frigates
The first of class, Hr Ms De Zeven Provincien (F802), was commissioned in April 2002. Tromp (F803) was commissioned in March 2003, De Ruyter (F804) in April 2004 and Evertsen (F805) in June 2005.
In December 2003, Hr Ms De Zeven Provincien became the first vessel to successfully fire the Evolved Sea Sparrow Missile (ESSM) and Standard Missile SM2-MR Block IIIA using interrupted and continuous wave illumination and X-band uplinks. Both missiles were controlled by the APAR radar.
In December 2006, Hr Ms Tromp participated in Tactical Ballistic Missile Defence (TBMD) tests with the US Navy. The ship, fitted with a Thales SMART-L radar with a new extended long-range mode, was able to detect and track targets representing tactical ballistic missiles.
TRILATERAL FRIGATE AGREEMENT
The Netherlands, Germany and Spain set up the Trilateral Frigate Agreement for the national construction of frigates. In addition to the De Zeven Provincien, the F100 (Alvaro de Bazan) is being built in Spain by Navantia and the F124 (Sachsen) is being built in Germany by ARGE F124 (Blohme and Voss, HDW and Thyssen Nordseewerke). The cooperation extends to the ship platform and not to the systems.
STEALTH-ORIENTATED FRIGATE DESIGN
The design of the ship incorporates stealth features with emphasis on reduction of radar cross section, infrared, acoustic, electrical and magnetic signatures.
Watertight compartments, insulation, redundancy of vital systems, power distribution, and routing, blast and fragmentation retaining structures provide a very high level of survivability against missile attack and fire hazards. For nuclear chemical and biological warfare protection the ship is subdivided into two gas citadels and a sub citadel.
SEWACO XI COMBAT DATA COMMAND SYSTEM
The ship is equipped with the SEWACO XI combat data system developed by Thales Naval Nederland. The RNIN's Centre for the Automation of Weapon and Command Systems (CAWCS) has developed the software. The system will use Asynchronous Transfer Mode (ATM) network architecture.
The Rohde & Schwarz communications suite includes secure voice and data satellite communications, Link 11 and Link 16.
ESSM AND SM2-MR BLOCK IIIA SURFACE TO AIR MISSILE SYSTEMS
The long-range surface-to-air missile system is the Evolved Sea Sparrow Missile (ESSM) developed by an international team led by Raytheon Missile Systems which has semi-active radar guidance with tail control motor to improve range, speed and manoeuvrability.
The ship's medium range anti-air missile is the Raytheon Standard Missile SM2-MR Block IIIA. SM-2MR has a range of 70km, a speed of Mach 2.5 and has semi-active radar seeker and an Aegis radio command link.
Both ESSM and SM2 are fired from a 40-cell Mk 41 Vertical Launch System (VLS). The five octuple launchers are installed with the caps almost flush with the surface of the bow deck behind the main gun.
The Boeing Harpoon surface-to-surface missile system is installed on the raised deck immediately behind the main mast. Harpoon is a medium-range missile with a range of 120km, a 220kg warhead and active radar terminal guidance.
In November 2005, RNLN announced plans to acquire 30 Tomahawk Block IV (Tactical Tomahawk) land attack missiles were approved. However in May 2007, the planned procurement was cancelled
SHIPS GUNS
The ship's main gun on the bow deck is a 127mm / 54 calibre Oto Melara gun. Two Thales Naval Nederland Goalkeeper close-in weapon systems are installed, one on the raised deck in front of the main mast and one facing the stern on the raised deck overlooking the helicopter landing deck. Goalkeeper's Gatling principle 30mm gun provides a maximum firing rate of 4,200 rounds a minute with a range of 1,500m.
Two close-in Oerlikon 20mm machine guns are installed, one to port and one to starboard of the main mast.
TWIN MK32 MOD 9 323MM TORPEDO LAUNCHERS
Two mk 32 mod 9 323mm twin torpedo launchers are fitted one on each side of the ship at about two thirds the length of the ship from the bow. 24 mk 46 mod 5 torpedoes are stored in the ship's magazine.
DE ZEVEN PROVINCIEN CLASS FRIGATE COUNTERMEASURE SYSTEMS
The frigates are fitted with the Thales Defence Sabre integrated electronic warfare system which includes a 0.5GHz to 18GHz electronic support measures (ESM) system and a 7.5GHz to 18GHz active phased-array Electronic Countermeasures (ECM) system.
The ship has four launchers for the SRBOC (Super Rapid Blooming Offboard Countermeasures) decoy system from Lockheed Martin Sippican. The towed torpedo decoy is the Argon ST (formerly Sensytech) AN/SLQ-25 Nixie.
HELICOPTERS AND FLIGHT DECK
There is a 27m flight deck at the stern of the ship and a hangar with accommodation for a single helicopter such as the AgustaWestland Lynx, which is currently in service with the Royal Netherlands Navy, or the 10t NH90 naval helicopter which will be in service after 2007.
The deck is fitted with the DCN Samahe helicopter handling system which allows deployment and recovery of the Lynx or NH90 helicopter in high sea states. The ship's helicopter direction system is the VESTA.
THALES NAVAL NEDERLAND SENSOR SYSTEMS
The ship's radar suite is supplied by Thales Naval Nederland. The Smart-L three dimensional radar operating in D band provides air search. APAR (Active Phased Array Radar) provides air and surface search and weapon fire control. APAR is a multi-function radar operating at X-band. It provides target search and tracking and guidance for the Standard Missile 2. The Scout LPI (Low Probability of Intercept) radar operating at I band provides surface search. There is also a Mark XII Identification Friend or Foe (IFF) radar.
In April 2006, the Dutch government placed an order for four Thales Naval Nederland Sirius LR-IRST long-range dual-band infra-red search and track systems for the vessels. Sirius will be installed on top of the mast tower. The system will provide horizon search capability against sea-skimming missiles. Sirius will be delivered between 2008 and 2011. Thales Mirador electro-optic surface surveillance system is also fitted.
The ship's sonar system is the Atlas Elektronik DSQS-24C hull-mounted search and attack sonar.
CODOG PROPULSION SYSTEM AND ENGINES
The ship's Combined Diesel Or Gas (CODOG) propulsion system has two independent propulsion lines. The two Rolls-Royce Spey SM1C gas turbine engines each provide 18.5MW. Two cruise diesel engines, Stork-Wartsila 16V6ST, provide 8.4MW.
The two gearboxes are installed in a separate transmission room. The ship has two controllable pitch propellers and two rudders with rudder roll stabilisation.
The maximum ship speed is 30kt and the cruise speed is 18kt. The range is 5,000 miles at 18kt.
Specifications - De Zeven Provincien Class (LCF) Air Defence and Command Frigates, Netherlands
Key Data
Crew-202 (32 officers, 47 NCOs, 123 ratings)
Overall Length-144.24m
Length Between Perpendiculars-130.20m
Maximum Beam-18.80m
Beam at Waterline-17.15m
Scantling Draught-5.18m
Depth F-Deck-13.60m
Displacement-Full Load 6,050t
Performance
Boost Speed-29kt
Cruise Speed-18kt
Weapon Systems
Surface-to-Air Missile System-5 x 8-cell Mk41 VLS Vertical Launch System for Evolved SeaSparrow (ESSM) and Standard SM2-MR missile
Surface-to-Surface Missile System-Harpoon anti-ship missile
Close-In Weapon System-2 x Goalkeeper 30mm CIWS
Main Gun-1 x Oto Melara 127mm gun
Close-In Machine Gun System- 2 x Oerlikon 20mm guns
Torpedo Weapon System-2 x Mk 32 mod 9 torpedo launchers, Mk 46 Mod 5 torpedoes
Countermeasures
ESM/ECM-Sabre
Decoy Launching System-4 x SRBOC
Torpedo Countermeasure System-Nixie
Helicopter-1 x 10t helicopter (NH 90)
Radar
Air Search-SMART-L
Multi-Function Radar System-APAR
Radar IFF system-IFF MK XII
Helicopter Direction System-VESTA
Surface Search-SCOUT
Sensors
Infrared Search and Track System-SIRIUS LR-IRST
Electro-Optic Surveillance System-Mirador
Sonar DSQS-24C
Engines
Propulsion-CODOG
Gas Turbines-2 x Rolls-Royce Spey SM1C (18.5MW each)
Diesel Engines-2 x Stork-Wartsila 16V6ST (10MW)
Diesel Generators-2 x Paxman Valenta Type (1,650kW each)
Gears-2 x gearboxes in separated transmission room
Propellers-2 x controllable-pitch propellers
Steering System-2 rudders, with rudder roll stabilisation
In December 2003, Hr Ms De Zeven Provincien became the first vessel to successfully fire the Evolved Sea Sparrow Missile (ESSM) and Standard Missile SM2-MR Block IIIA using interrupted and continuous wave illumination and X-band uplinks. Both missiles were controlled by the APAR radar.
In December 2006, Hr Ms Tromp participated in Tactical Ballistic Missile Defence (TBMD) tests with the US Navy. The ship, fitted with a Thales SMART-L radar with a new extended long-range mode, was able to detect and track targets representing tactical ballistic missiles.
TRILATERAL FRIGATE AGREEMENT
The Netherlands, Germany and Spain set up the Trilateral Frigate Agreement for the national construction of frigates. In addition to the De Zeven Provincien, the F100 (Alvaro de Bazan) is being built in Spain by Navantia and the F124 (Sachsen) is being built in Germany by ARGE F124 (Blohme and Voss, HDW and Thyssen Nordseewerke). The cooperation extends to the ship platform and not to the systems.
STEALTH-ORIENTATED FRIGATE DESIGN
The design of the ship incorporates stealth features with emphasis on reduction of radar cross section, infrared, acoustic, electrical and magnetic signatures.
Watertight compartments, insulation, redundancy of vital systems, power distribution, and routing, blast and fragmentation retaining structures provide a very high level of survivability against missile attack and fire hazards. For nuclear chemical and biological warfare protection the ship is subdivided into two gas citadels and a sub citadel.
SEWACO XI COMBAT DATA COMMAND SYSTEM
The ship is equipped with the SEWACO XI combat data system developed by Thales Naval Nederland. The RNIN's Centre for the Automation of Weapon and Command Systems (CAWCS) has developed the software. The system will use Asynchronous Transfer Mode (ATM) network architecture.
The Rohde & Schwarz communications suite includes secure voice and data satellite communications, Link 11 and Link 16.
ESSM AND SM2-MR BLOCK IIIA SURFACE TO AIR MISSILE SYSTEMS
The long-range surface-to-air missile system is the Evolved Sea Sparrow Missile (ESSM) developed by an international team led by Raytheon Missile Systems which has semi-active radar guidance with tail control motor to improve range, speed and manoeuvrability.
The ship's medium range anti-air missile is the Raytheon Standard Missile SM2-MR Block IIIA. SM-2MR has a range of 70km, a speed of Mach 2.5 and has semi-active radar seeker and an Aegis radio command link.
Both ESSM and SM2 are fired from a 40-cell Mk 41 Vertical Launch System (VLS). The five octuple launchers are installed with the caps almost flush with the surface of the bow deck behind the main gun.
The Boeing Harpoon surface-to-surface missile system is installed on the raised deck immediately behind the main mast. Harpoon is a medium-range missile with a range of 120km, a 220kg warhead and active radar terminal guidance.
In November 2005, RNLN announced plans to acquire 30 Tomahawk Block IV (Tactical Tomahawk) land attack missiles were approved. However in May 2007, the planned procurement was cancelled
SHIPS GUNS
The ship's main gun on the bow deck is a 127mm / 54 calibre Oto Melara gun. Two Thales Naval Nederland Goalkeeper close-in weapon systems are installed, one on the raised deck in front of the main mast and one facing the stern on the raised deck overlooking the helicopter landing deck. Goalkeeper's Gatling principle 30mm gun provides a maximum firing rate of 4,200 rounds a minute with a range of 1,500m.
Two close-in Oerlikon 20mm machine guns are installed, one to port and one to starboard of the main mast.
TWIN MK32 MOD 9 323MM TORPEDO LAUNCHERS
Two mk 32 mod 9 323mm twin torpedo launchers are fitted one on each side of the ship at about two thirds the length of the ship from the bow. 24 mk 46 mod 5 torpedoes are stored in the ship's magazine.
DE ZEVEN PROVINCIEN CLASS FRIGATE COUNTERMEASURE SYSTEMS
The frigates are fitted with the Thales Defence Sabre integrated electronic warfare system which includes a 0.5GHz to 18GHz electronic support measures (ESM) system and a 7.5GHz to 18GHz active phased-array Electronic Countermeasures (ECM) system.
The ship has four launchers for the SRBOC (Super Rapid Blooming Offboard Countermeasures) decoy system from Lockheed Martin Sippican. The towed torpedo decoy is the Argon ST (formerly Sensytech) AN/SLQ-25 Nixie.
HELICOPTERS AND FLIGHT DECK
There is a 27m flight deck at the stern of the ship and a hangar with accommodation for a single helicopter such as the AgustaWestland Lynx, which is currently in service with the Royal Netherlands Navy, or the 10t NH90 naval helicopter which will be in service after 2007.
The deck is fitted with the DCN Samahe helicopter handling system which allows deployment and recovery of the Lynx or NH90 helicopter in high sea states. The ship's helicopter direction system is the VESTA.
THALES NAVAL NEDERLAND SENSOR SYSTEMS
The ship's radar suite is supplied by Thales Naval Nederland. The Smart-L three dimensional radar operating in D band provides air search. APAR (Active Phased Array Radar) provides air and surface search and weapon fire control. APAR is a multi-function radar operating at X-band. It provides target search and tracking and guidance for the Standard Missile 2. The Scout LPI (Low Probability of Intercept) radar operating at I band provides surface search. There is also a Mark XII Identification Friend or Foe (IFF) radar.
In April 2006, the Dutch government placed an order for four Thales Naval Nederland Sirius LR-IRST long-range dual-band infra-red search and track systems for the vessels. Sirius will be installed on top of the mast tower. The system will provide horizon search capability against sea-skimming missiles. Sirius will be delivered between 2008 and 2011. Thales Mirador electro-optic surface surveillance system is also fitted.
The ship's sonar system is the Atlas Elektronik DSQS-24C hull-mounted search and attack sonar.
CODOG PROPULSION SYSTEM AND ENGINES
The ship's Combined Diesel Or Gas (CODOG) propulsion system has two independent propulsion lines. The two Rolls-Royce Spey SM1C gas turbine engines each provide 18.5MW. Two cruise diesel engines, Stork-Wartsila 16V6ST, provide 8.4MW.
The two gearboxes are installed in a separate transmission room. The ship has two controllable pitch propellers and two rudders with rudder roll stabilisation.
The maximum ship speed is 30kt and the cruise speed is 18kt. The range is 5,000 miles at 18kt.
Specifications - De Zeven Provincien Class (LCF) Air Defence and Command Frigates, Netherlands
Key Data
Crew-202 (32 officers, 47 NCOs, 123 ratings)
Overall Length-144.24m
Length Between Perpendiculars-130.20m
Maximum Beam-18.80m
Beam at Waterline-17.15m
Scantling Draught-5.18m
Depth F-Deck-13.60m
Displacement-Full Load 6,050t
Performance
Boost Speed-29kt
Cruise Speed-18kt
Weapon Systems
Surface-to-Air Missile System-5 x 8-cell Mk41 VLS Vertical Launch System for Evolved SeaSparrow (ESSM) and Standard SM2-MR missile
Surface-to-Surface Missile System-Harpoon anti-ship missile
Close-In Weapon System-2 x Goalkeeper 30mm CIWS
Main Gun-1 x Oto Melara 127mm gun
Close-In Machine Gun System- 2 x Oerlikon 20mm guns
Torpedo Weapon System-2 x Mk 32 mod 9 torpedo launchers, Mk 46 Mod 5 torpedoes
Countermeasures
ESM/ECM-Sabre
Decoy Launching System-4 x SRBOC
Torpedo Countermeasure System-Nixie
Helicopter-1 x 10t helicopter (NH 90)
Radar
Air Search-SMART-L
Multi-Function Radar System-APAR
Radar IFF system-IFF MK XII
Helicopter Direction System-VESTA
Surface Search-SCOUT
Sensors
Infrared Search and Track System-SIRIUS LR-IRST
Electro-Optic Surveillance System-Mirador
Sonar DSQS-24C
Engines
Propulsion-CODOG
Gas Turbines-2 x Rolls-Royce Spey SM1C (18.5MW each)
Diesel Engines-2 x Stork-Wartsila 16V6ST (10MW)
Diesel Generators-2 x Paxman Valenta Type (1,650kW each)
Gears-2 x gearboxes in separated transmission room
Propellers-2 x controllable-pitch propellers
Steering System-2 rudders, with rudder roll stabilisation
Click Star to Rate
3 readers have rated this story.
THIS STORY HAS BEEN READ 8,865 TIMES.
Photos
Click image to enlarge

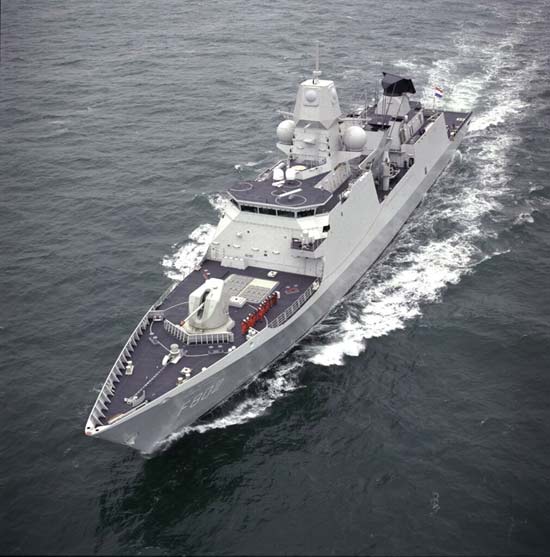

- Four De Zeven Provincien (LCF) frigates have been commissioned into the Royal Netherlands Navy.

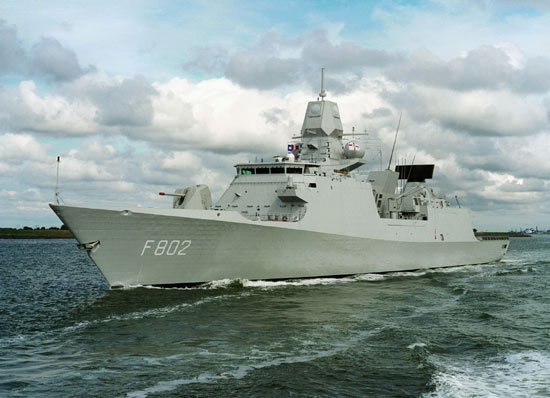

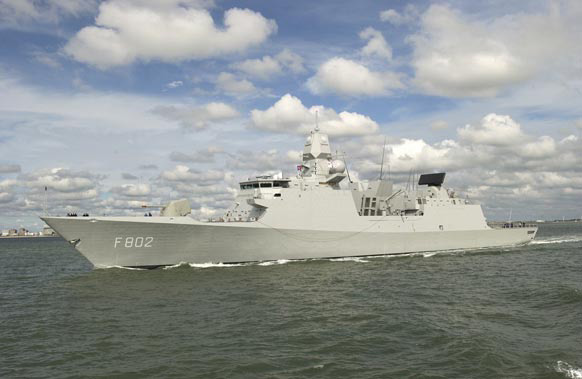

- The first of class was commissioned in April 2002.

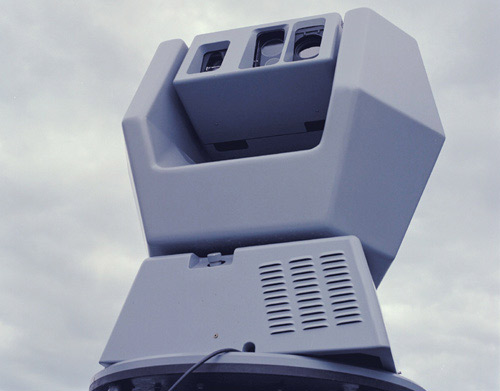

- The Mirador electro-optic surveillance, tracking and fire control system.

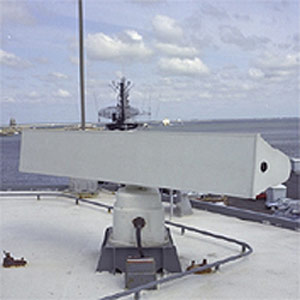

- The Scout low-probability-of-intercept radar provides surface search.

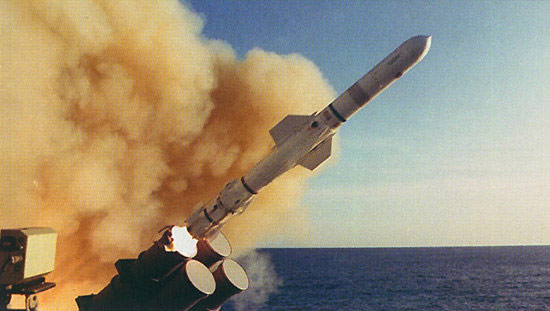

- The Harpoon surface-to-surface missile system.

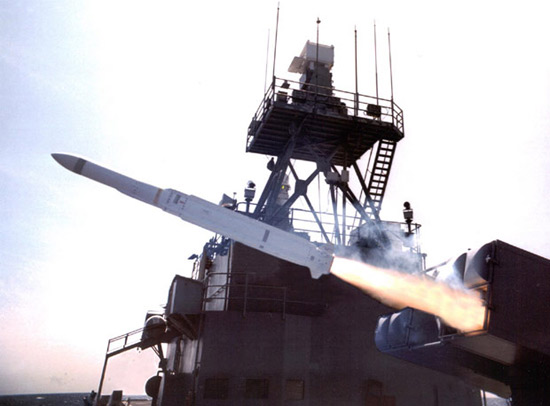

- The Evolved Sea Sparrow Missile (ESSM) has a new rocket motor and tail control to provide increased speed, range and manoeuvrability.

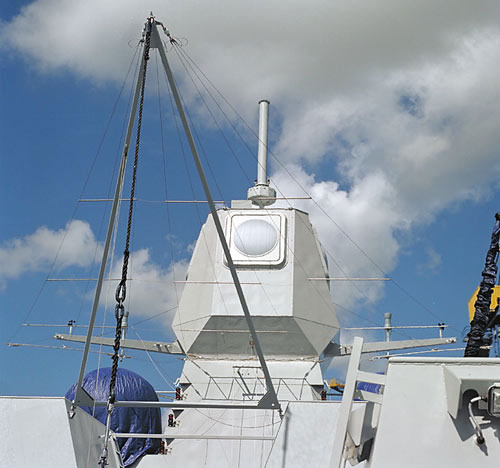

- The Thales APAR (Active Phased Array) multi-function radar provides air and surface search and weapon fire control.

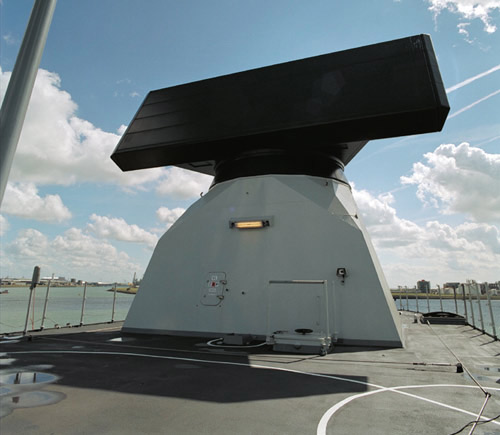

- The Thales Smart-L three-dimensional radar operating in D band provides air search.
